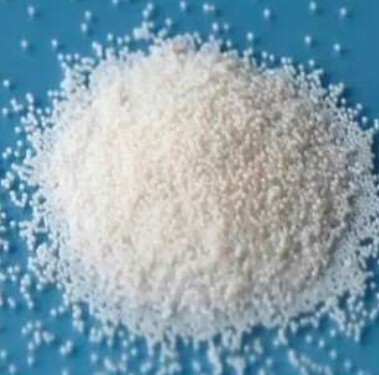

YSZ Zirconium Oxide Microbeads 0.10mm-0.65mm

0086-533-286 1996

Skype: cnretec

info@cnretec.com

MESSAGE

PRODUCT DESCRIPTION

CrownRe has perfected a high-purity nanomaterial titration process for producing zirconium oxide microbeads, utilizing 6nm high-purity ultrafine zirconium oxide from our own hydrothermal synthesis as raw material. The microbeads produced by this advanced titration method offer superior performance compared to those made by traditional rolling ball techniques, featuring lower porosity and higher density.

Performance and Characteristics

Performance and Characteristics

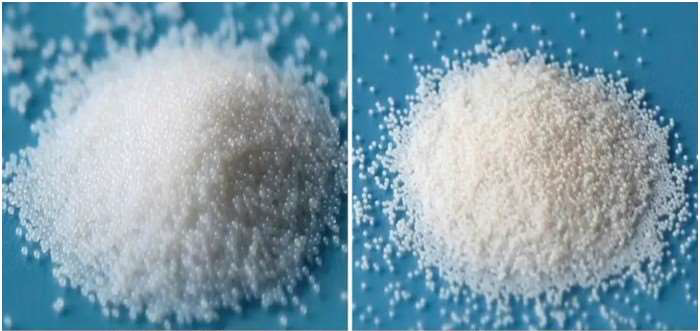

Eg. zirconia balls pre-sintered at 900 ℃and 1200 ℃

Product Specifications and Main Parameters

Product Specification	CY3-010	CY3-020	CY3-030	CY3-034	CY3-040	CY3-065
Composition%	ZrO2+HfO2	95.0±0.3
Composition%	Y2O3	4.8±0.2
Diameter φ mm	0.10	0.20	0.30	0.34	0.40	0.65
Size range mm	0.08~0.12	0.18~0.22	0.28~0.32	0.32~0.36	0.37~0.43	0.60~0.70
Packed density g/cm3	3.61	3.63	3.70	3.70	3.70	3.70
Density g/cm3	6.03	6.03	6.04	6.04	6.04	6.04
Hardness HV	≥1350	≥1350	≥1350	≥1350	≥1350	≥1300
Crushing strength N	≥10	≥40	≥130	≥150	≥200	≥400
Wear ppm/h	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50
